High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device

High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
Temel bilgi
Menşe yeri: Çin
Marka adı: TeXin
Sertifika: SGS,ISO9001
Min sipariş miktarı: 1
Fiyat: Anlaşılabilir
Ambalaj bilgileri: Dayanıklı kasa veya kutu
Teslim süresi: 3-5 gün
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: 50.00 pc/ay
En iyi fiyat Şimdi başvurun
Detay Bilgi
Marka: Texin Tip: Bahçeli Anten
VSWR: ≤1,5 Güç: 50W
Sıklık: 100-500mhz, 700-3000mhz (Özelleştirilmiş) Kazanmak: 8DBI
Çalışma Sıcaklığı: 40~80° Dış kabuk boyutu: 1210mm
Ağırlık: 2.05KG Bağlayıcı: N Konektörü
Kabuk malzemesi dışarı: alüminyum Çalışma Sıcaklığı: -20 ~+70 ℃
Vurgulamak:

high gain dipole oscillator antenna

,

omnidirectional dual-band drone antenna

,

spring base anti-drone antenna

Ürün Açıklaması

High Gain Spring Base Omnidirectional Dipole Oscillator Dual-Band Antenna
This omnidirectional dipole dual-band antenna features manually modulated frequency bands, supports full-band customization, and is equipped with a spring and suction cup at the bottom to cushion vibrations. It can be used in conjunction with vehicle-mounted drone countermeasure equipment. It is an essential transmission antenna for drone countermeasure equipment, low-altitude security systems, and portable jamming devices.
Shen Zhen Texin Electronics Co., Ltd has specialized in anti-drone devices, accessories, and antennas for more than 10 years. Product quality is guaranteed.
Product Specifications
Parameter Value Unit
Frequency 100-500MHz 700-3000MHz (customizable) MHz
Output 50W/100W (customizable) -
Gain 8-10 dBi
Flatness ±3 dBm
Work Voltage 50Ω dB
Input Connector Type N -
Lightning Protection DC Ground dB
Cable Type RG316 -
Output Connector VSWR ≤2 (No power and VNA test) -

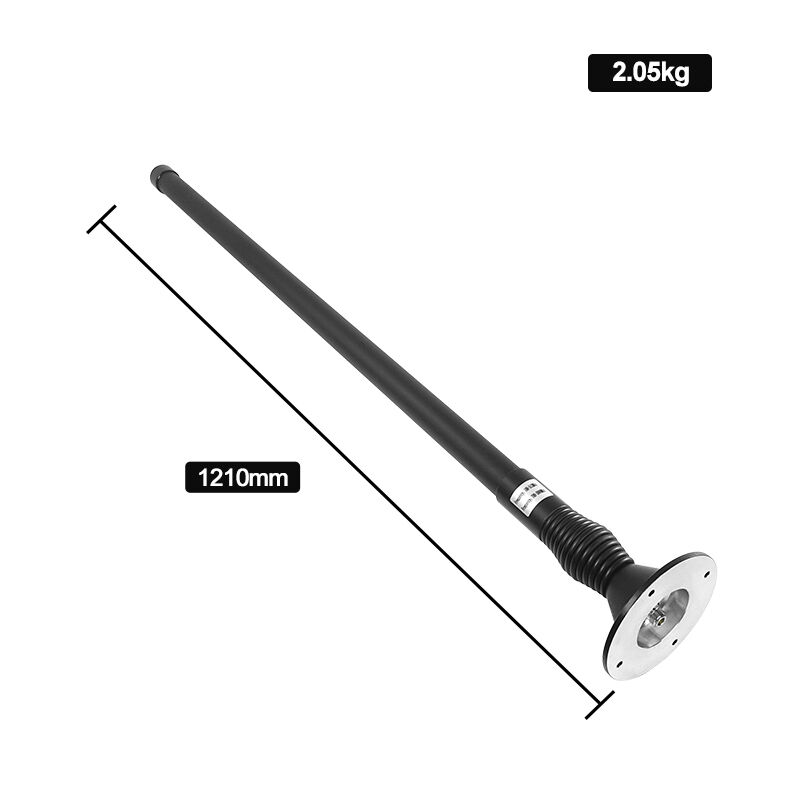

Outer Shell Size 1210 mm
Material Aluminum -
Weight 2.05 kg
Work Temperature -20~+70 ℃
Installation Machine installation -
Vibration Requirement Car load OK -
Available Options

Wattage: 10W, 20W, 30W, 40W, 50W

Frequency Bands: 100MHz, 200MHz, 300MHz, 1.2GHz, 2.4GHz, 5.2GHz, 5.8GHz

Product Features
  • Full-band, all-around jamming capability effectively counters UAV image transmission signals (2.4GHz, 5.2GHz, 5.8GHz) and GNSS navigation frequencies
  • The spring structure can buffer vibrations and resist minor impacts, making it suitable for in-vehicle/portable devices
  • Two frequency bands integrated into one antenna, stable output and high cost performance
  • The shell is made of copper, which can withstand high-intensity impact
  • Adopt a high-quality telecommunications-grade feeder, which can be bent at any angle
  • The antenna root is reinforced, and the connection is more reliable and durable
Product Images

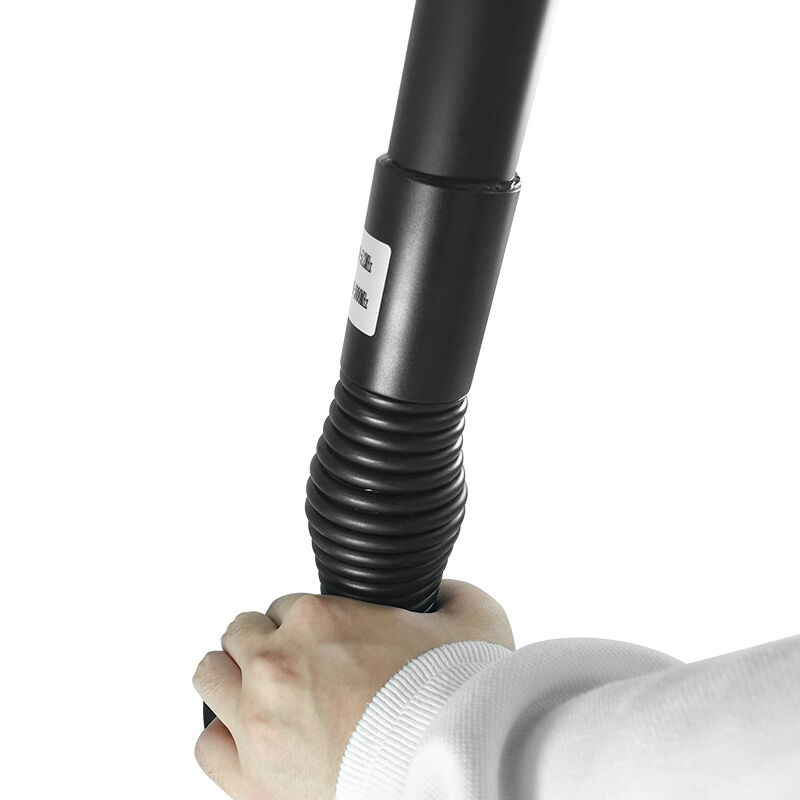

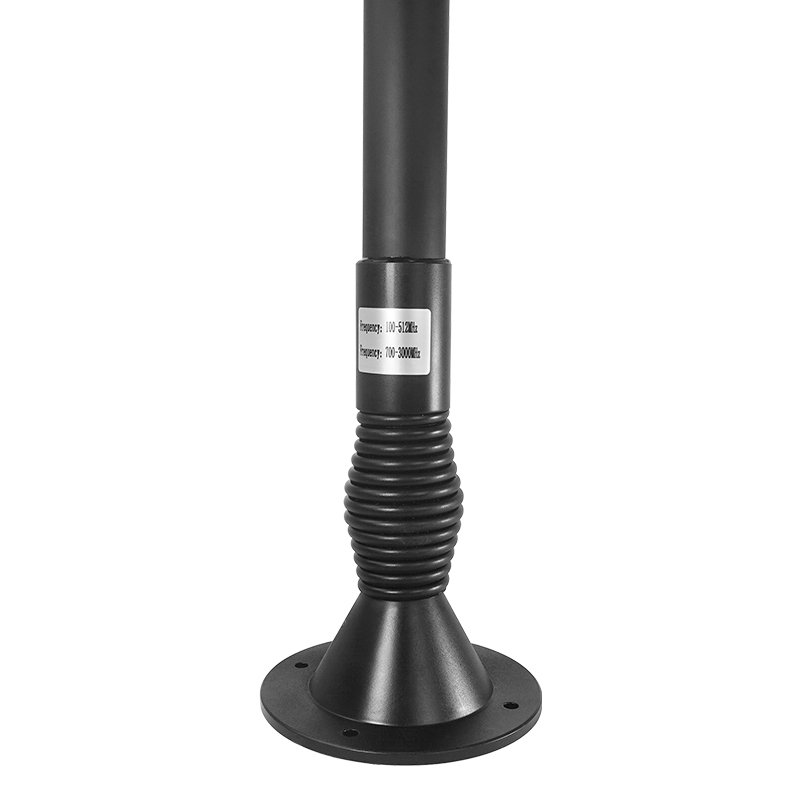

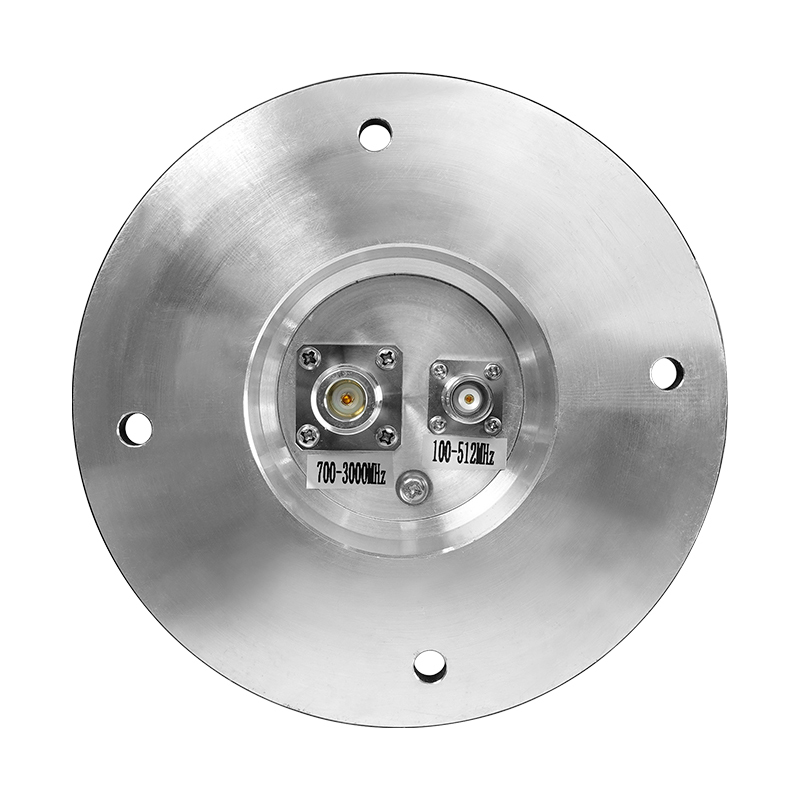

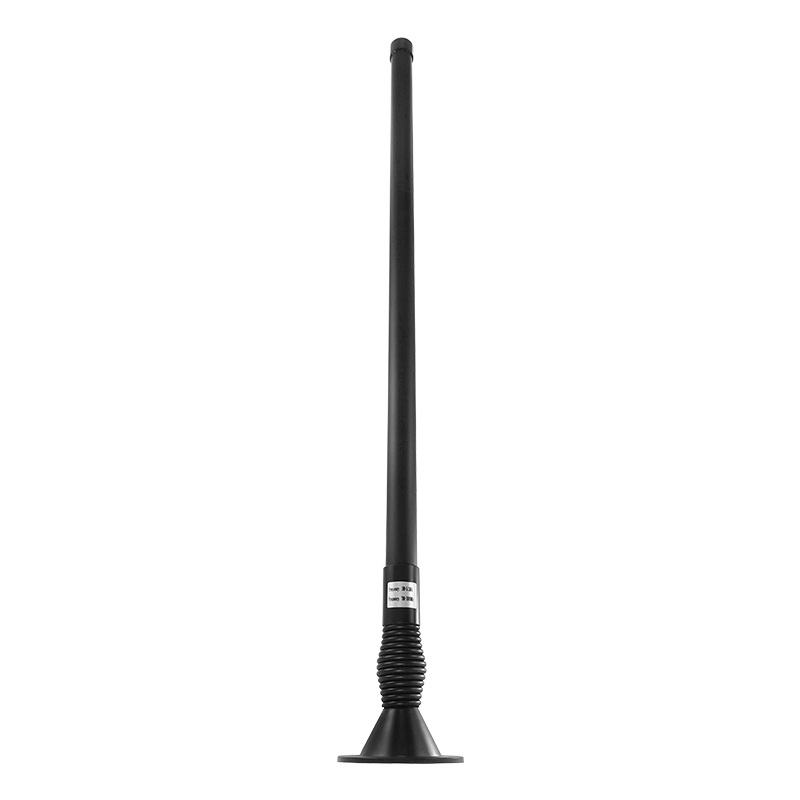

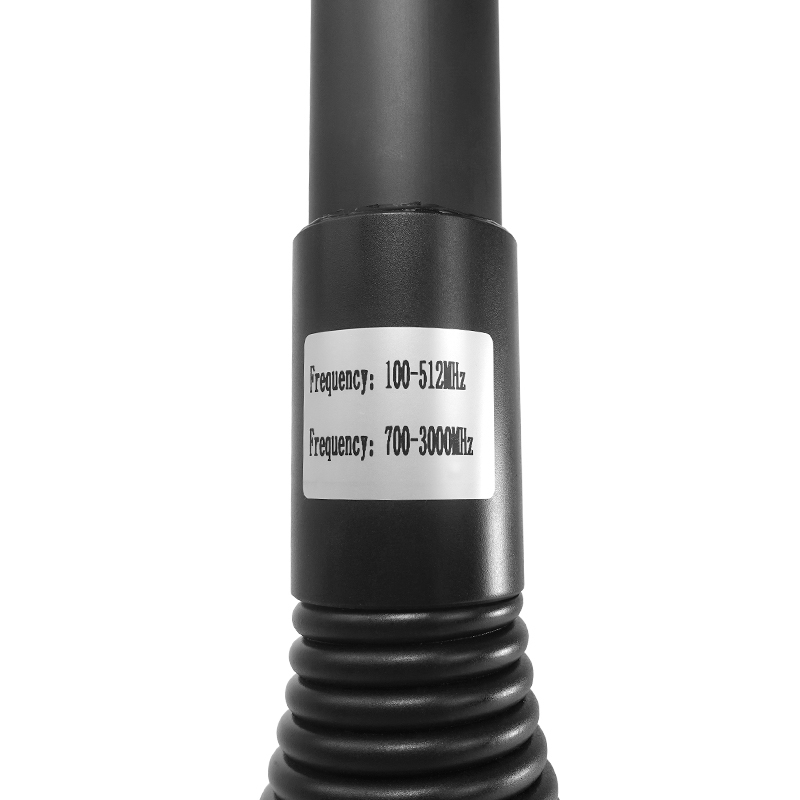

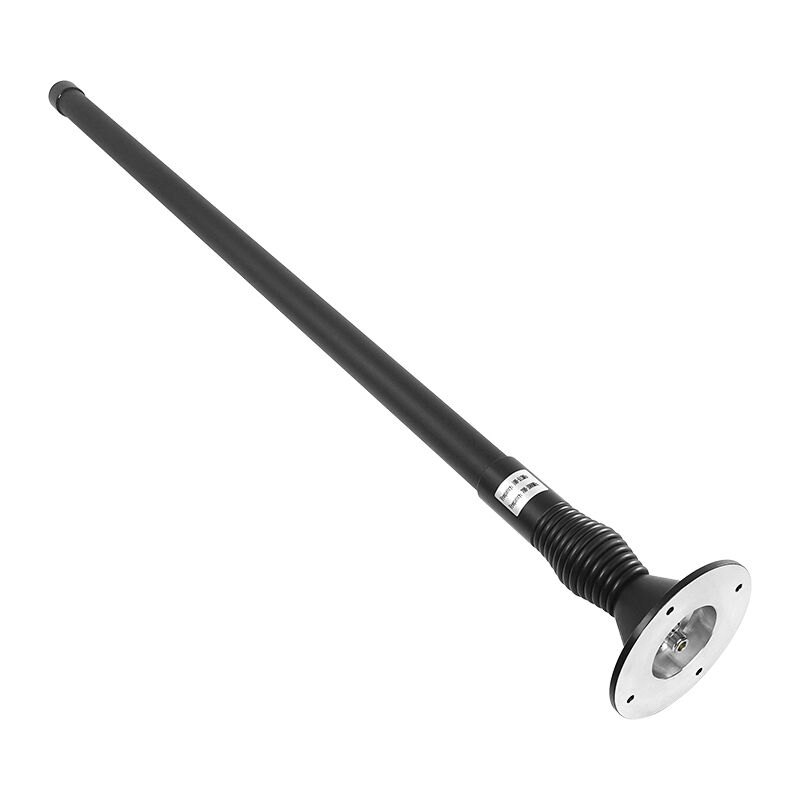

High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device 0
Product Application
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device 1
Frequently Asked Questions
Are you a manufacturer?
Yes, our factory is located in Longgang District, Shenzhen. Welcome to visit us here.
MOQ?
1 to 100 pieces
Payment term?
T/T, Alibaba Trade Assurance (Visa, Master card, E-checking, etc), WestUnion, Paypal, etc.
How to proceed with an order?
A. Let us know your requirements and product application through inquiry on Alibaba website
B. We quote according to your specification
C. Customers agree with the quotation and make the payment
What to do if I receive defective products?
Our strict quality control ensures a 100% pass rate. However, products can be damaged in transit. Please share photos or videos of any defective products, and we will provide compensation or send replacement parts.
Factory Pictures
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device 2 High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device 3 High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device 4
